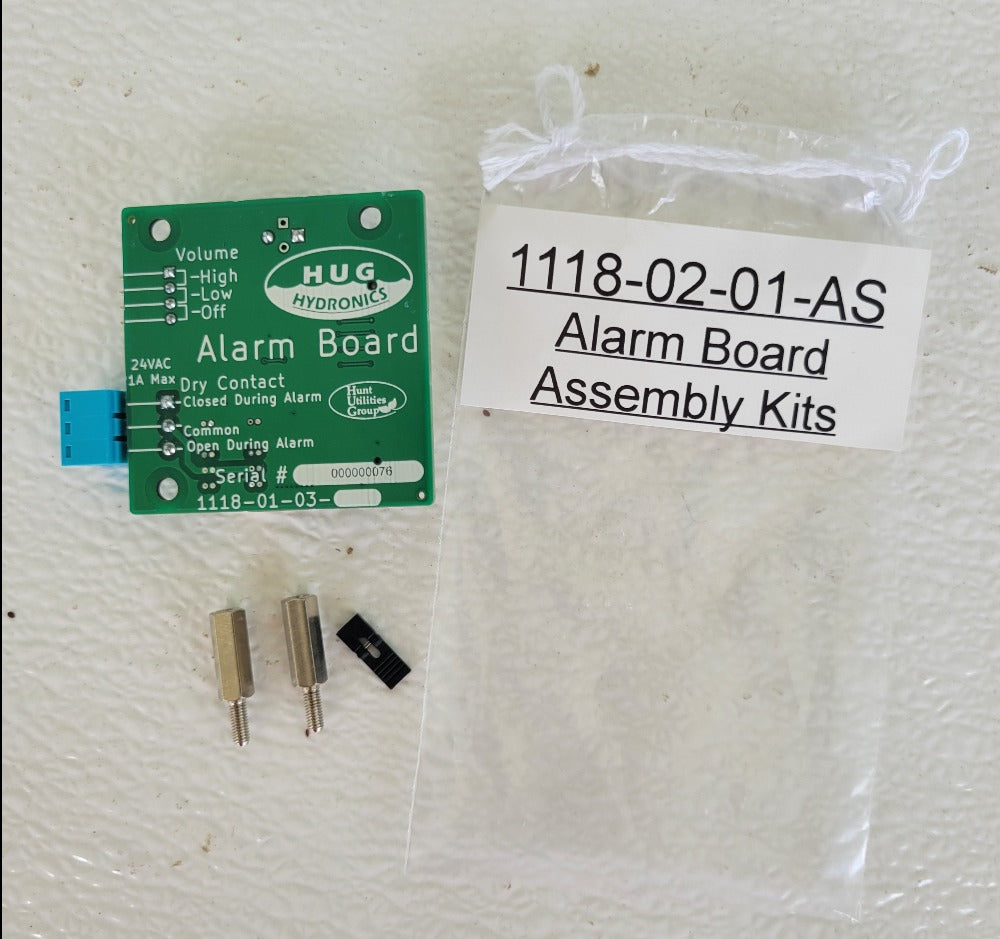

  • Load image into Gallery viewer, The alarm board for the HUG Hydronics radiant in-floor heating system comes pre installed in all new systems

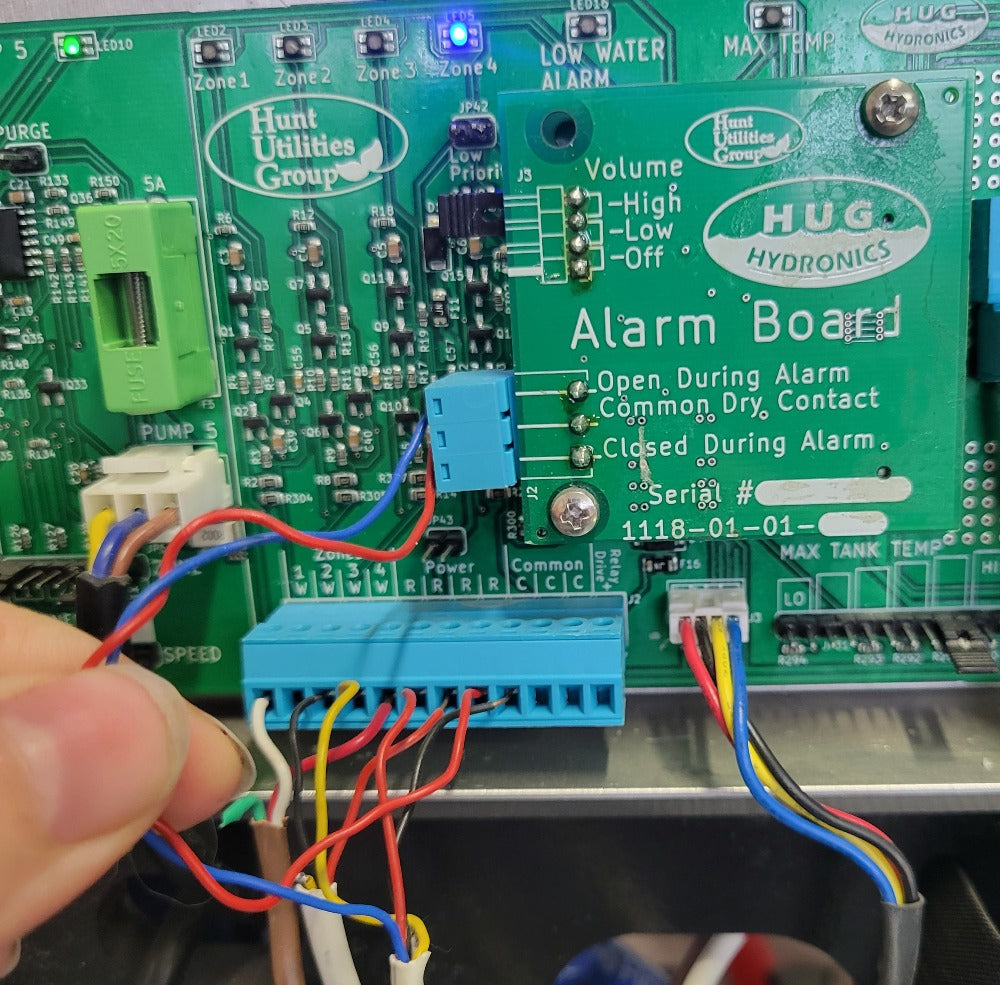

  • Load image into Gallery viewer, The  alarm board for the HUG Hydronics radiant in-floor heating system sits in the middle of the control board and will buzz if the tank water is too low
  • Load image into Gallery viewer, The alarm board for the HUG Hydronics radiant in-floor heating system makes it easy to monitor pump function for your radiant heat-system

Alarm Board for HUG Hydronics in-floor heating system

Regular price
$57.00
Sale price
$57.00
Regular price
Sold out
Unit price
per


Alarm board for the patent-pending, HUG Hydronics in-floor heating system. Alarm board option provides a buzzer and dry contacts for remote alarming (it can alert you through your smart thermostat/phone, and tells you if your tank needs more water or if a pump needs attention).


The buzzer will alarm when any pump fuse expires or low water is detected.  If power is lost to the system the normally open dry contact will close to indicate an alarm for the system.

If ordering with a new HUG Hydronics in-floor heating system, the alarm board will come pre-installed.

Key Features

  • Alarm Buzzer with soft or loud buzzer setting
  • Alarms when there is low water in the tank
  • Alarms when any of the fuses expire
  • Dry contact relay for remote alarming when power is lost to the system

SPECIFICATIONS

Overall Dimensions & Weight

2” long x 2” wide x 0.44” tall (50.7mmx50.7mm); <0.1lb

Power Input

12VDC

Relay Voltage

30VDC; 24VAC

Relay Contact Ratings

2A at 30 VDC

Relay type

1 Normally open and 1 normally closed

Buzzer settings

Soft or loud buzzer setting

Part number

1118-01-AF




ALARM BOARD INSTALLATION STEPS

  1. Remove the (2) screws in the alarm board area of the control board and insert the (2) 15mm stand-offs provided.
  2. Mount the alarm on the stand-offs re-using the 2 screws.
  3. Adjust volume of the buzzer using the J3 jumper.  Jumpering Pins 1 to 2 provides the loudest setting, Pins 2 to 3 the softest setting and Pins 3 to 4 are for off.
  4. Connect wires to the J2 connector for remote alarm (optional).  Pin 3 is open during an alarm, Pin 2 is the common and Pin 1 is closed during an alarm.
